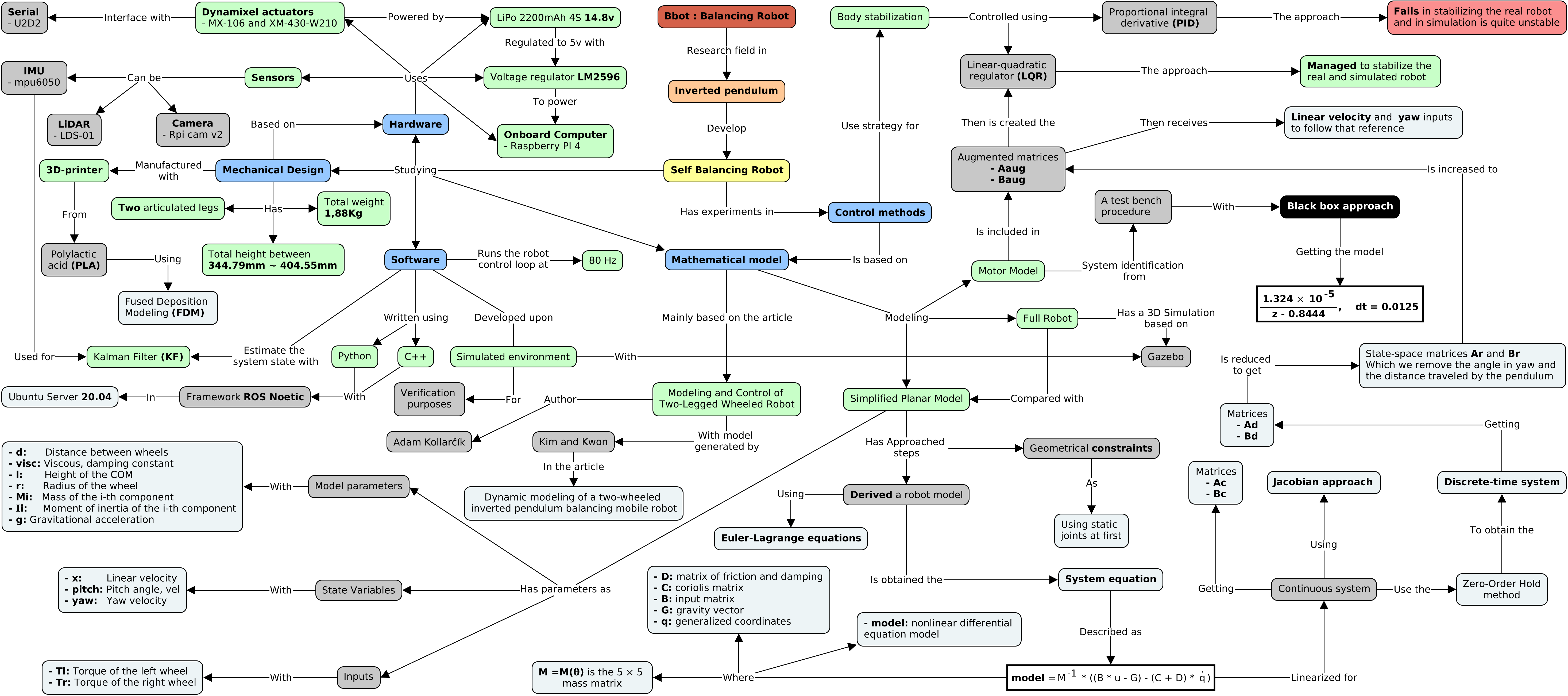

Through the conceptual map, it is possible to visualize the main ideas and concepts addressed in Bbot and the relationships between these points. This map was developed to highlight the key aspects of the project and make it easier to understand.
Conceptual Map.
As the last stage of development of the Bbot project, we decided to make a few more adjustments to the controller so that the robot could achieve smoother stability.
During some tests to implement the robot’s teleoperation function, we noticed that the linear velocity reading was incorrect. The values were much higher than the robot could actually reach. The error was in the conversion from the Dynamixel encoder data to rad/s. After correcting this error, the controller’s behavior changed significantly, requiring the controller to be retuned. We also observed that changing this parameter caused a lot of vibration in the robot, much more than before.
We then implemented a moving average filter to try to attenuate the control signal coming from the controller. However, although the response became less oscillatory, the controller became weaker. So we continued adjusting the controller parameters until we reached an ideal value for the robot to become more stable.
In the end, we managed to parameterize the controller ideally and the robot can now balance itself without vibrations and is much more stable!
After a few more adjustments to the Kalman filter and controller parameterization, we were able to teleoperate Bbot! We tested teleoperation in a maze and with obstacles, which Bbot overcame. We also tested the robot climbing a ramp. All these tests can be seen below.
Here is also the link to the presentation made to discuss the main ideas of Bbot with other researchers at the Center of Competence in Robotics and Autonomous Systems. This same presentation can be viewed below.
Phase 1 of Bbot comes to an end, but Phase 2 is about to begin with many new challenges and improvements!
From the development team (Matheus França and Lucas Souza), a special thanks to our advisor Marco Reis and to the important support of our colleagues Diogo Martins, Mateus Seixas, Caio Maia and Luiz Ledezma.
